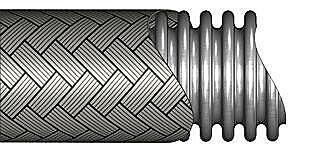

Pressureflex HP® is Hose Master’s high pressure high pressure metal hose, with an annular corrugated configuration. Pressureflex HP® is made from heavy-wall stainless steel, and offers flexibility and dependability when higher pressures are a factor.
Explanation of Pressureflex HP® Part Numbers:
AF ____________
Material Code
7 ____________
Braid Code
Material Codes:
8 – T321 Stainless Steel
9 – T316L Stainless Steel
Braid Codes:
00 – Unbraided
50 – T304 Single Braid
55 – T304 Double Braid
60 – T316 Single Braid
66 – T316 Double Braid
70 – T321 Single Braid
77 – T321 Double Braid
Example: AF8750 = T321 stainless steel, annular corrugated metal hose with a single T304 stainless steel braid.
| Inside Diameter (in.) | Number of Braids (#) | Outside Diameter (in.) | Static Min. Bend Radius (in.) | Dynamic Min. Bend Radius (in.) | Maximum Working Pressure (psi) | Burst Pressure (psi) | Weight Per Foot (lbs.) |
|---|---|---|---|---|---|---|---|
| 1/4** |
0 1 2 |
0.423 0.483 0.543 |
1.0 | 5.5 |
450 3000 4000 |
n/a 12000 16000 |
0.08 0.15 0.22 |
| 3/8** |
0 1 2 |
0.655 0.735 0.815 |
1.5 | 8.5 |
400 2400 3300 |
n/a 9600 14000 |
0.12 0.31 0.48 |
| 1/2** |
0 1 2 |
0.774 0.854 0.934 |
2.5 | 10.0 |
400 2400 3200 |
n/a 9600 12800 |
0.24 0.40 0.57 |
| 3/4** |
0 1 2 |
1.13 1.19 1.25 |
4.0 | 8.0 |
220 1100 1650 |
n/a 4430 6696 |
0.41 0.58 0.76 |
| 1 |
0 1 2 |
1.43 1.49 1.55 |
5.0 | 9.0 |
190 1000 1400 |
n/a 4187 5837 |
0.52 0.76 0.99 |
| 1 1/4 |
0 1 2 |
1.74 1.82 1.90 |
6.5 | 12.0 |
200 900 1350 |
n/a 3758 5494 |
0.76 1.13 1.50 |
| 1 1/2 |
0 1 2 |
2.10 2.18 2.26 |
7.5 | 13.0 |
90 750 1200 |
n/a 3070 4842 |
1.13 1.54 1.96 |
| 2 |
0 1 2 |
2.55 2.68 2.80 |
9.0 | 15.0 |
105 800 1150 |
n/a 3304 4738 |
1.10 2.29 3.47 |
| 2 1/2 |
0 1 2 |
3.35 3.48 3.60 |
10.5 | 17.0 |
46 575 900 |
n/a 2461 3857 |
1.75 3.05 4.35 |
| 3 |
0 1 2 |
3.67 3.79 3.92 |
12.0 | 20.0 |
36 550 800 |
n/a 2252 3254 |
1.92 3.18 4.46 |
| 4 |
0 1 2 |
4.92 5.04 5.16 |
9.8 | 25.0 |
23 425 575 |
n/a 1754 2350 |
2.29 4.12 5.98 |
| 5* |
0 1 |
5.96 6.13 |
12.8 | 34.0 |
28 331 |
n/a 1324 |
3.03 5.14 |
| 6* |
0 1 |
6.97 7.22 |
14.8 | 40.0 |
23 285 |
n/a 1140 |
3.74 6.44 |
*5 inch and 6 inch diameters are supplied with braided braid. ** Material only available in 316L
Notes:
- Some hose material and braid code combinations may be unavailable. Contact Hose Master Customer Service at (800) 221-2319. for available combinations of hose material and braid alloys by hose size
- The minimum bend radius is measured from the centerline of the hose
- The working pressure decreases with temperature – see derating factor
- For rapid pressure fluctuations, consult factory
Hose Master places emphasis on continual improvements within our manufacturing processes, product offering and services. Hose Master reserves the right to make changes without further notice to any products contained herein.
-
